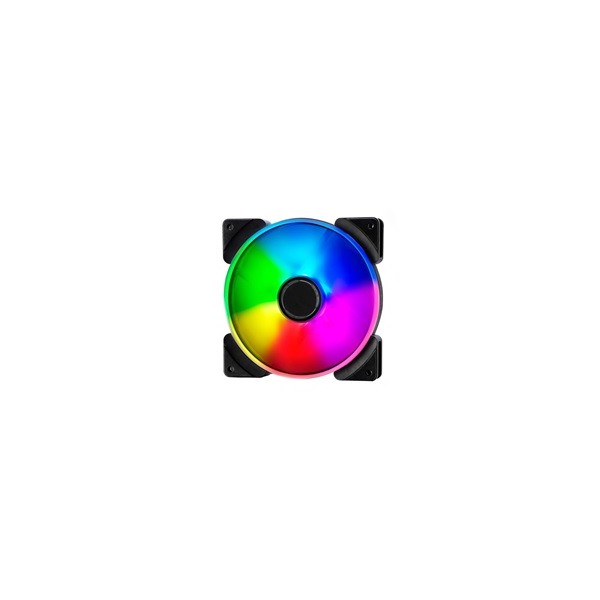

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.


Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.


As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.


PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.


Key features



  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring produce an exceptionally uniform glow
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
  • Integrated vibration-damping corners made from high-quality synthetic rubber
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Chainable RGB cables simplify wiring and make the most of available connections
  • PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only)
  • Black sleeved power cables offer an extra touch of style
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
  • 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets

Specifications



Specification



Prisma AL-14



Prisma AL-14 PWM



Size



140 x 140 x 25 mm



140 x 140 x 25 mm



Blade color



Semi-opaque white



Semi-opaque white



Frame color



Black



Black



LED type



Addressable RGB



Addressable RGB



Screw hole pattern



125 x 125 mm



125 x 125 mm



Power connector



3-pin



4-pin



Bearing



LLS



LLS



Number of blades



7



7



Rotational speed



1000 RPM



500 – 1700 RPM



Noise level


19.4 dB(A) 34.1 dB(A)

Airflow (CFM)


63.33 CFM 103.85 CFM

Airflow (m3/h)



107.60 m3/h


176.44 m3/h

Static pressure


1.07 mmH2O 2.38 mmH2O

Fan input power


1.2W 2.16W

Fan max input current


0.30A 0.30A

Fan input voltage



12V



12V



Fan starting voltage



7V



7V



LED input power


1.50W 1.50W

LED max input current


0.30A 0.30A

LED input voltage



5V



5V



Low (0-20%) PWM speed



N/A



500 RPM



Low PWM noise level



N/A



15.1 dB(A)



Low PWM airflow



N/A


31.67 CFM

Low PWM static pressure



N/A


0.44 mmH2O

MTBF



100,000 hrs



100,000 hrs



Fan weight



198 g



200 g



Package weight


Package weight 3-pack



246 g


690 g



248 g


692 g



Cable length



500 mm



500 mm



Cable type



Black sleeved



Black sleeved



Package dimensions


(Including hanging tab)



202 x 142 x 30 mm


222 x 142 x 80 mm



202 x 142 x 30 mm


222 x 142 x 80 mm



Package dimensions


(Excluding hanging tab)



167 x 142 x 30 mm


177 x 142 x 80 mm



167 x 142 x 30 mm


177 x 142 x 80 mm



Package contents



Prisma AL-14



Prisma AL-14 PWM



Prisma AL-14 140mm fan



Prisma AL-14 PWM 140mm fan



4 x fan screws



4 x fan screws





Prisma AL-14 3P



Prisma AL-14 PWM 3P



3 x Prisma AL-14 140mm fans



3 x Prisma AL-14 PWM 140mm fans



12 x fan screws



12 x fan screws



Opis

Gwarancja normalna
24
Wymiary
140 x 140 x 25 mm
Waga
200
Pozostałe parametry
Waga potójnego opakowania: 0.692 kg
Wentylator
14 cm
Rodzaj chłodzenia
Aktywne
Technologia chłodzenia
Powietrzem
Prędkość wentylatora (min.)
500
Prędkość wentylatora (maks.)
1700
Przepływ powietrza
103.85
Liczba wentylatorów
3
Poziom hałasu
34.1

Komentarze

Napisz swoją opinię

FRACTAL DESIGN wentylator 140mm Prisma AL-14 ARGB PWM 3-pack

Cooler type:Active; Cooler utilization:PC Case
