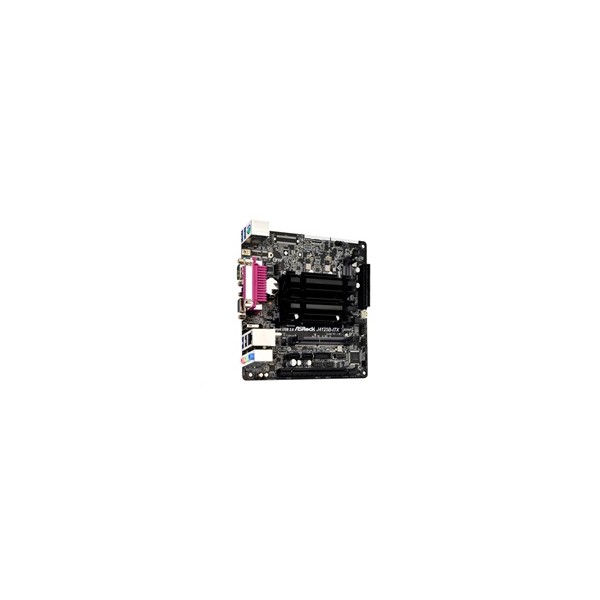

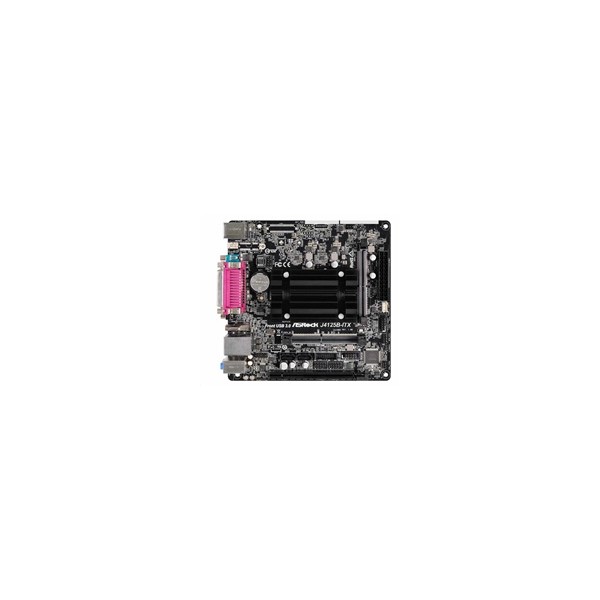

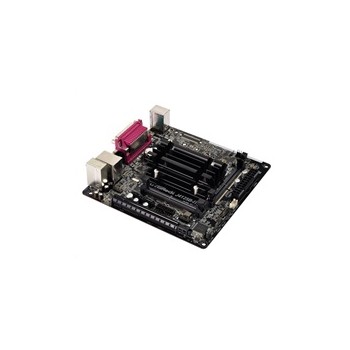

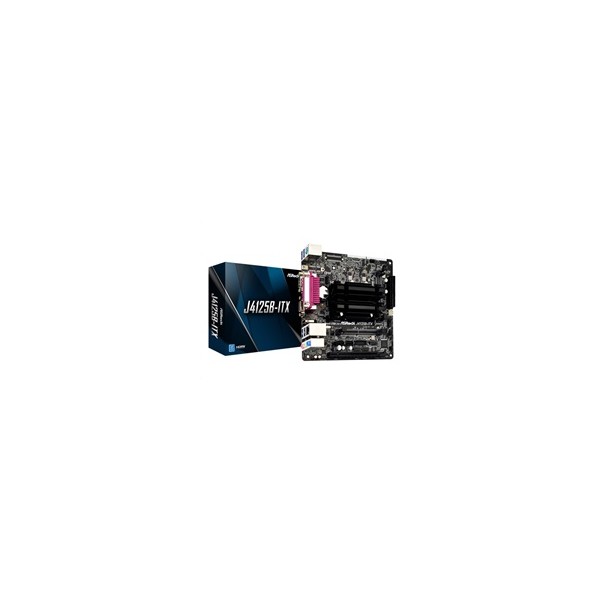

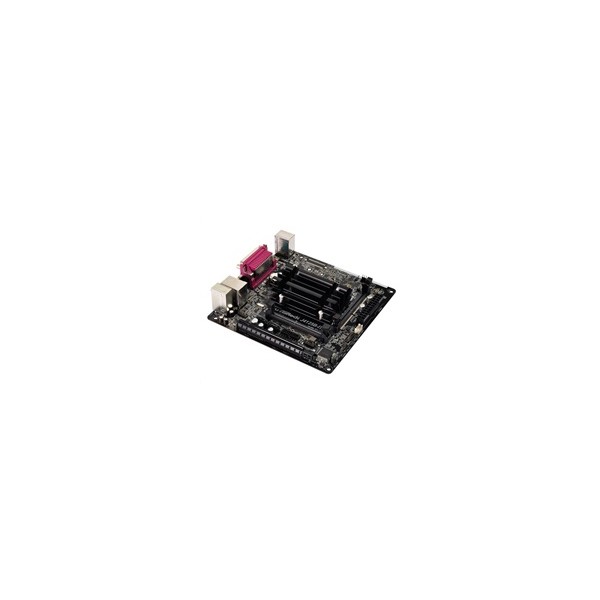

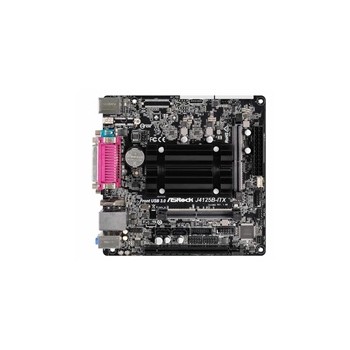

ASRock MB Int.procesor J4125B-ITX, 2xDDR4, VGA, mini-ITX
468,81 zł
Brutto
SKU: 0000051906
EAN: 4710483930461
Kod producenta: J4125B-ITX
Socket:Integrated processor; Chipset:Intel; Motherboard memory module type:DDR4; Format:Mini-ITX; RAID support:No; Integrated graphics card; Integrated LAN card:1
ASRock MB Int.procesor J4125B-ITX, 2xDDR4, VGA, mini-ITX
- ASRock Super Alloy
- Intel Quad-Core Processor J4125 (up to 2.7 GHz)
- Supports DDR4 2133/2400 SO-DIMM
- 1 PCIe 2.0 x16 (x2 mode)
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 2 SATA3
- 5 USB 3.2 Gen1 (2 Front, 3 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
TECHNICAL SPECIFICATIONS
| Unique Feature | ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | - Intel Quad-Core Processor J4125 (up to 2.7 GHz) |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 SO-DIMM Slots* - Supports DDR4 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB** *2GB DRAM per module is not supported. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 3.0 support |
| Graphics | - Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz) - DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2 - HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit - HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots | - 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode) |
| Storage | - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)* *USB3_1_2 is shared with USB2_3. |

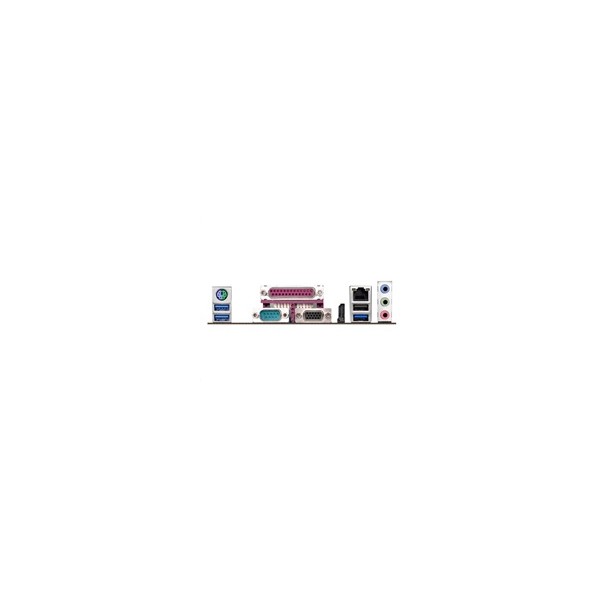

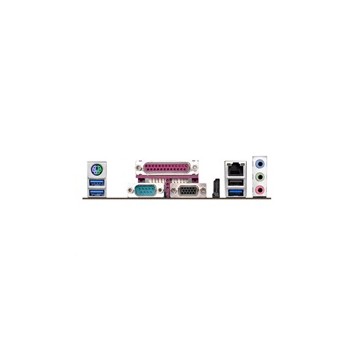

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x Parallel Port (ECP/EPP Support) - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 1 x USB 2.0 Port (Supports ESD Protection) - 3 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock XFast LAN UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design |
| OS | - Microsoft Windows 10 64-bit *Supports UEFI mode only |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Opis
- Certyfikaty
- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
- Liczba portów USB
- 1
- Przeznaczenie
- PC
- Szerokość
- 170 mm
- Głębokość
- 170 mm
- WiFi
- Nie
- Liczba rdzeni
- 4
- Model procesora
- J4125
- Rozdzielczość (maks.)
- 4096 x 2160 px
- Kanały wyjściowe audio
- 7.1 kan.
- Obsługiwane systemy operacyjne Windows
- Windows 10 x64
- Gwarancja
- Gwarancja 36 miesięcy
- Porty Ethernet LAN (RJ-45)
- 1
- Dołączone sterowniki
- Tak
- Producent procesora
- Intel
- Przewody
- SATA
- Układ audio
- Realtek ALC887
Producent ASRock Incorporation 37, Sec. 2, Jhongyang S. Rd., Beitou District 112 Taipei City Tajwan info@asrock.com.tw
Osoba odpowiedzialna ASRock EUROPE B.V. Bijsterhuizen 11-11 6546 AR Nijmegen Holandia sales@asrock.nl +31-24-345-44-33
Socket:Integrated processor; Chipset:Intel; Motherboard memory module type:DDR4; Format:Mini-ITX; RAID support:No; Integrated graphics card; Integrated LAN card:1
