AMD X570 | SAM4 | ATX | 2xPCI-Express 1x | 2xPCI-Express 16x | 1xM.2 | DDR4 | 3466/3200/2933/2666/2400/2133 MHz | Memory slots 4 | 1xHDMI | 1xDisplayPort | 8xUSB 3.2 | 1xPS/2 | 1xRJ45 | 3xAudio port | USB 2.0 | USB 3.2 | Serial | Video Depending on CPU | Audio Realtek ALC1200 | LAN Gigabit | RAID SATA 0, 1, 10
Opis
- Gwarancja normalna
- 24
- Wymiary
- 30.5 cm x 22.9 cm
- Interfejs
- Tak

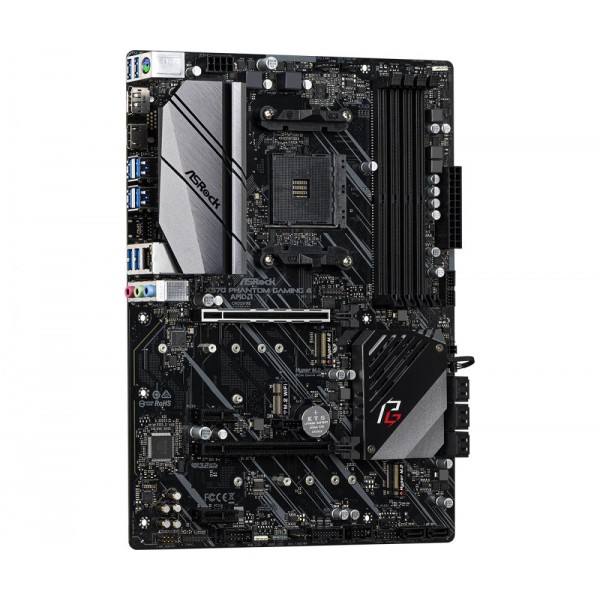

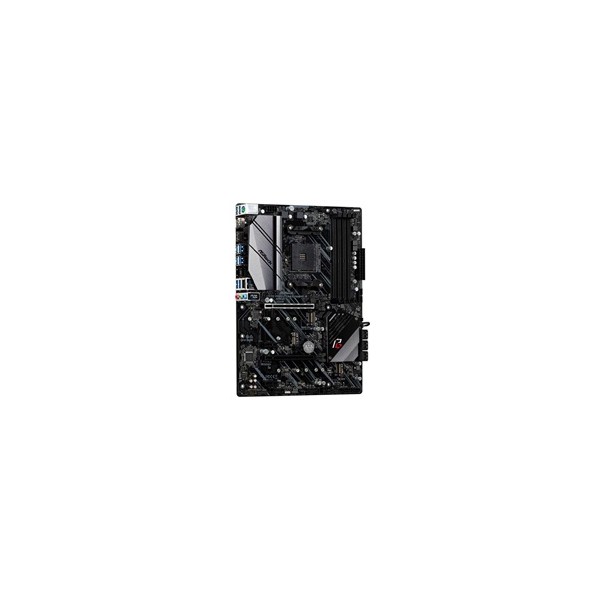

- Model
- X570 PHANTOM GAMING 4
- Obsługiwane systemy operacyjne
- Windows 10
- Oprogramowanie
- AntiVirus Software (Trial Version)
Google Chrome Browser and Toolbar
Sterowniki
Utilities

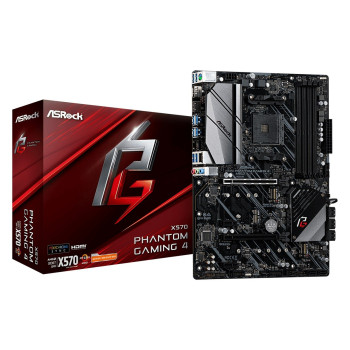

- Akcesoria w zestawie
- - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets
I/O Shield
Instrukcja użytkownika
Kabel SATA x 2
Montaż for M.2 x 3
PÅyta CD
- Rodzina procesora
- AMD Ryzen
- Maks. wielkość pamięci
- 128
- Gniazda rozszerzeń
- 1
1 x M.2
- Port / Złącze COM
- Tak
- Port / Złącze LPT
- Nie
- Producent chipsetu
- AMD
- Chipset
- AMD X570

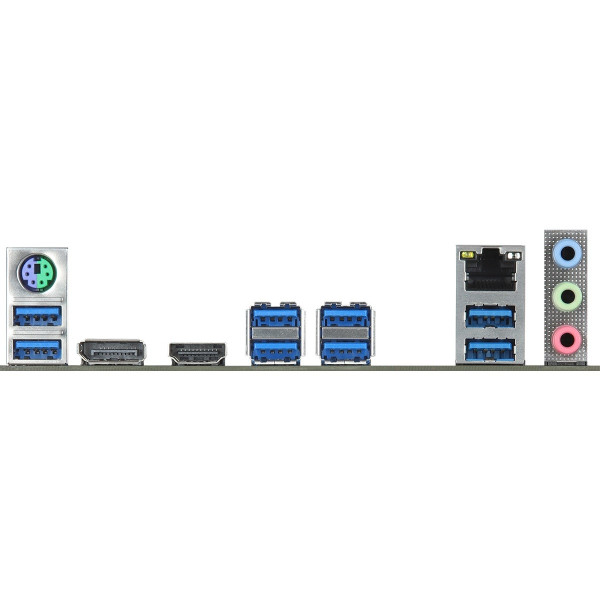

- Złącza zewnętrzne
- 6 x USB 3.0
- Interfejs sieciowy
- 1 x 10/100/1000 Mbit/s
Giga PHY Intel I211AT
Gigabit LAN 10/100/1000 Mb/s
Supports Energy Efficient Ethernet 802.3az
Supports Lightning/ESD Protection
Supports PXE
Supports Wake-On-LAN
- Złącza wejścia / wyjścia
- 1
3
8
- Gniazdo procesora
- Socket AM4
- Częstotliwość szyny pamięci
- 3200 MHz
- Maksymalna ilość urządzeń SATA
- 8
- RAID
- SATA 0, 1, 10
Tak
- Szczegółowe dane o interfejsach dysków/napędów
- 1 x Hyper M.2 Socket (M2_1)
1 x Hyper M.2 Socket (M2_3)
8 x SATA3 6.0 Gb/s Connectors
AHCI and Hot Plug
NCQ
RAID 1 and RAID 10)
support RAID (RAID 0
supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
- Zintegrowany procesor
- Nie
- Grafika
- Deep Color (12bpc)
DirectX 12
Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
Supports Auto Lip Sync
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports Microsoft PlayReady
xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
- Karta dźwiękowa
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
ELNA Audio Caps
Individual PCB Layers for R/L Audio Channel
PCB Isolate Shielding
Premium Blu-ray Audio support
Supports Surge Protection
- Porty USB na tylnym panelu
- 8
- Porty USB do wyprowadzenia z płyty
- 6
- FireWire (IEEE 1394)
- Nie
- Złącza dostępne na płycie
- 1 x Thunderbolt
- Funkcje specjalne
- ASRock Easy RAID Installer
ASRock Full HD UEFI
ASRock Instant Flash
ASRock Key Master
ASRock Polychrome SYNC
ASRock XFast LAN
Software
UEFI
- Bios
- +1.8V
256Mb AMI UEFI Legal BIOS with GUI support
ACPI 5.1 compliance wake up events
CPU
CPU Load-Line Calibration
CPU VDDCR_SOC
CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment
DRAM
PERM VDDCR_SOC
PREM VDD_CLDO
SMBIOS 2.3 support
Supports \"Plug and Play\"
Supports jumperfree
VDDG
VDDP
VPPM
- Format płyty
- ATX
- Max. prędkość zapisu
- 0.007374
- Rodzaj pamięci
- DDR4
- Typ pamięci
- DDR4
- Liczba portów USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1
- 10
- Częstotliwość
- 2133/2400/2667/2933/3200/3466
- Liczba gniazd DDR4
- 4
- Liczba portów USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2
- 2
- Ilość w opakowaniu
- 1
- Gniazda pamięci
- 4
- Gniazdo elektryczne
- SAM4
- Zintegrowane audio
- Realtek ALC1200
- Zintegrowane video
- W zależności od procesora
- Zintegrowany LAN
- Gigabit
