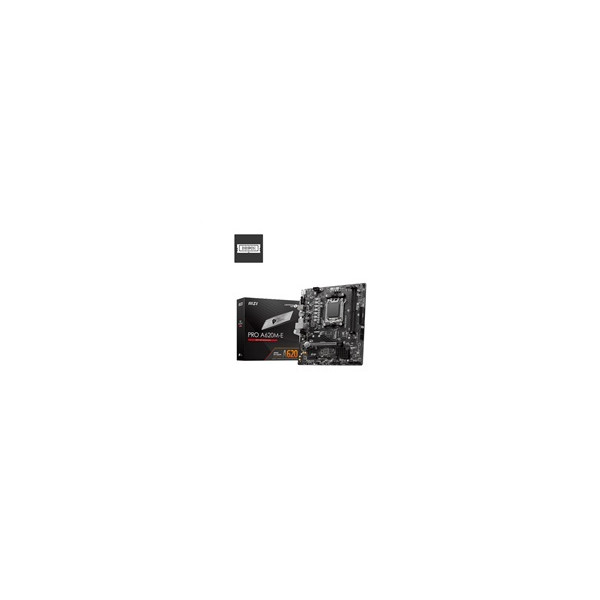

MSI MB Sc LGA1700 PRO A620M-E, AMD A620, 2xDDR5, 1xHDMI, 1xVGA, mATX

CPU

Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

Chipset

AMD A620

Memory

2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Ethernet

Realtek RTL8111H Gigabit LAN

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

Internal I/O Ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

Back Panel I/O Ports

1x HDMI™
1x VGA
2x Keyboard/Mouse
4x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
3x Audio connectors
2x USB 2.0

LED FEATURE

4x EZ Debug LED

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX
211mmx243.84mm
