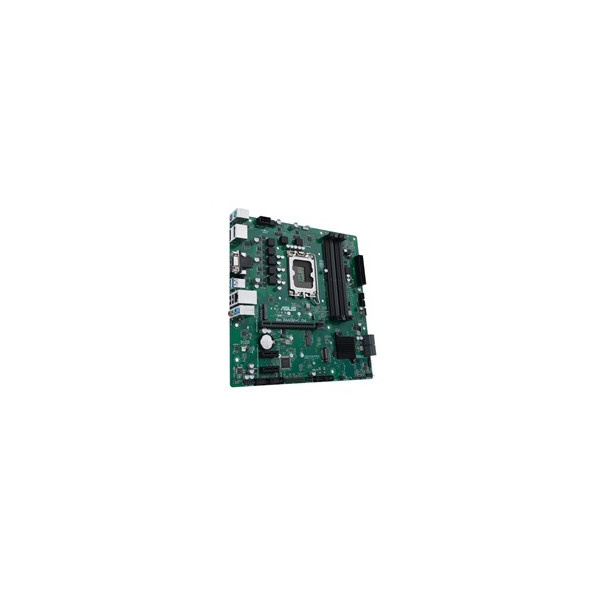

ASUS MB Sc LGA1700 PRO B660M-C D4-CSM DDR4, Intel B660, 4xDDR4, 2xDP, 1xHDMI, 1xVGA, mATX
623,89 zł
Brutto
SKU: 0001331006
Kod producenta: 90MB19B0-M1EAYC
Socket:Socket 1700; Chipset:Intel B660; Motherboard memory module type:DDR4; Format:ATX; PCI express 16x:1; Integrated graphics card; Other intefrace:M.2
Pro B660M-C D4-CSM
TECHNICAL SPECIFICATIONS
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Optimem | |
| *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphics | 2 x DisplayPort** |
| 1 x D-Sub port | |
| 1 x HDMI port*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | Intel 12th Gen Processors |
| 1 x PCIe 4.0/3.0 x16 slot | |
| Intel B660 Chipset | |
| 2 x PCIe 3.0 x1 slots | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| - Intel 12th Gen processors support PCIe 4.0 x4 mode | |
| Intel B660 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1 x Intel 1Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 4 ports) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 2 x DisplayPort | |
| 1 x HDMI port | |
| 1 x D-Sub port | |
| 1 x Intel 1Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 keyboard (purple) port | |
| 1 x PS/2 mouse (green) port | |
| Internal I/O Connectors | Fan and cooling related |
| 1 x 4-pin CPU Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrude header | |
| 2 x COM Port headers | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x COM debug header | |
| 1 x LPT header | |
| 1 x Mono-out header(with Amp IC) | |
| 1 x M.2 slot (Key E) | |
| 1 x SMBUS header | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS EZ DIY |
| - Box Headers | |
| Bespoke Motherboard Design & Business Focused Features | |
| - Q-LED Core | |
| - ASUS Self Recovering BIOS | |
| - ASUS Event Log | |
| - ASUS Commercial BIOS kit | |
| - Anti-Moisture | |
| - 24/7 Reliability | |
| - Overcurrent Protection | |
| TPM IC onboard | |
| Software Features | ASUS Exclusive Software |
| IT Management software supported | |
| - ASUS Control Center Express(ACCE) | |
| BIOS | 128Mb Flash ROM |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 SSD screw package | |
| 1 x M.2 Key E screw package | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | mATX Form Factor |
| 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Socket:Socket 1700; Chipset:Intel B660; Motherboard memory module type:DDR4; Format:ATX; PCI express 16x:1; Integrated graphics card; Other intefrace:M.2
