CMP 520


Let it glow.

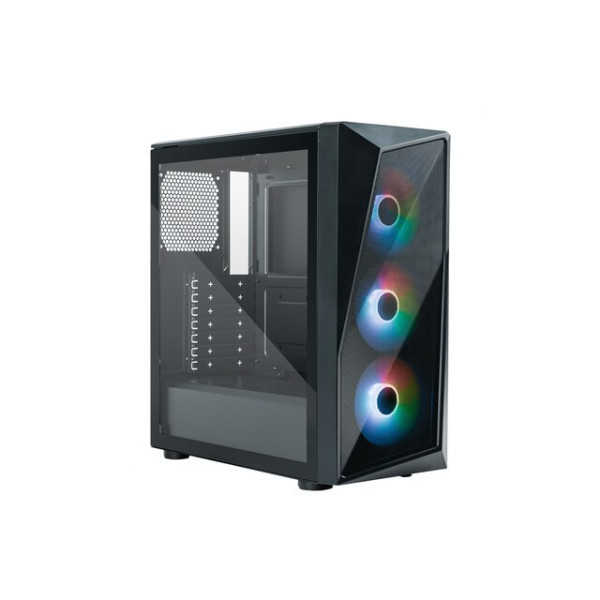

Like a geode cradling glistening crystals within, CMP 520’s asymmetrical front panel design frames the preinstalled three 120mm ARGB fans as unique centerpieces on the build. Ample mesh provides generous intake for efficient cooling as well as dust filtration, extending the lifespan of installed components while allowing them to operate at maximum capacity. Several lighting options are offered out of the box, customizable with a single click. Users may also tailor lighting effects and color in depth when connecting the fans to the motherboard, to match the theme of their build or gaming environment. The perforated power supply shroud accommodates both active and passively cooled PSUs, while keeping cables neatly tucked away for a tastefully sleek build.



  • Mesh Geode Front Panel – Inspired by clean-cut, asymmetrical crystal formations, the mesh front panel offers generous intake as well as efficient dust filtration.
  • Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
  • Full Black Coating & PSU Cover – Let your system stand out with an all-black background and a PSU cover to hide cables.
  • Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
  • Room For Upgrades - Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.

TECHNICAL SPECIFICATIONS


Product NumberCP520-KGNN-S00
Exterior ColorBlack
MaterialExterior - Steel, Plastic
Left Side Panel - Tempered Glass
Dimensions (L x W x H)incl. Protrusions - 441.27 x 204 x 462.79mm
Body size - 432 x 204 x 448mm
Volume41.66L
Motherboard SupportMini-ITX, Micro-ATX, ATX
Expansion Slots7
Drive Bays5.25" ODD - 0
3.5" HDD - 2
2.5" SSD - 2
I/O PanelUSB Ports - 1 x USB 3.2 Gen 1 Type A,1 x USB2.0
Audio In / Out - 1 x 3.5mm Headset Jack (Audio + Mic)
ARGB ControllerCF120P (integrated with fan)
Pre-installed Fan(s)Top - N/A
Front - 3 x CF120 (Molex)
Rear - N/A
Fan SupportTop - 2 x 120mm, 2 x 140mm
Front - 3 x 120mm, 2 x 140mm
Rear - 1 x 120mm
Radiator Support Top - 120mm/240mm* (*RAM height below 35mm)
Front - 120/140/240/280mm
Rear - 120 mm
ClearancesCPU Cooler - 161mm
Power Supply - 160mm
Graphics Card - 350mm
Cable Routing Behind MB Tray - 18.5mm
Dust FiltersTop, Bottom
Power Supply SupportBottom Mount, ATX
Warranty2 Years

Opis

Gwarancja normalna
24
Wymiary
439 x 204 x 463mm
Waga
6
Kolor
Czarny
Typ obudowy
Midi Tower
Format
Mini ITX
Miejsca montażowe 3,5\'\' wewn.
2
Moc zasilacza
Brak
Wentylator
12 cm
Złącza na przednim panelu
1 x USB 3.0
Miejsca montażowe 2,5\'\' wewn.
2
Liczba miejsc montażowych
4
Okno
Tak
Gwarancja
24 Miesiące Gwarancji
Gwarancja 24 miesiące

Komentarze

Napisz swoją opinię

Cooler Master case CMP 520, mini-ITX, bez zdroje, průhledná bočnice, černá

Case:Mini ITX; PC Case equipment:Without integrated PSU, Front Audio Panel, Front USB Panel, Transparent Sidewall; Number of slots 2.5":2; Number of slots 3.25" (HDD):2
